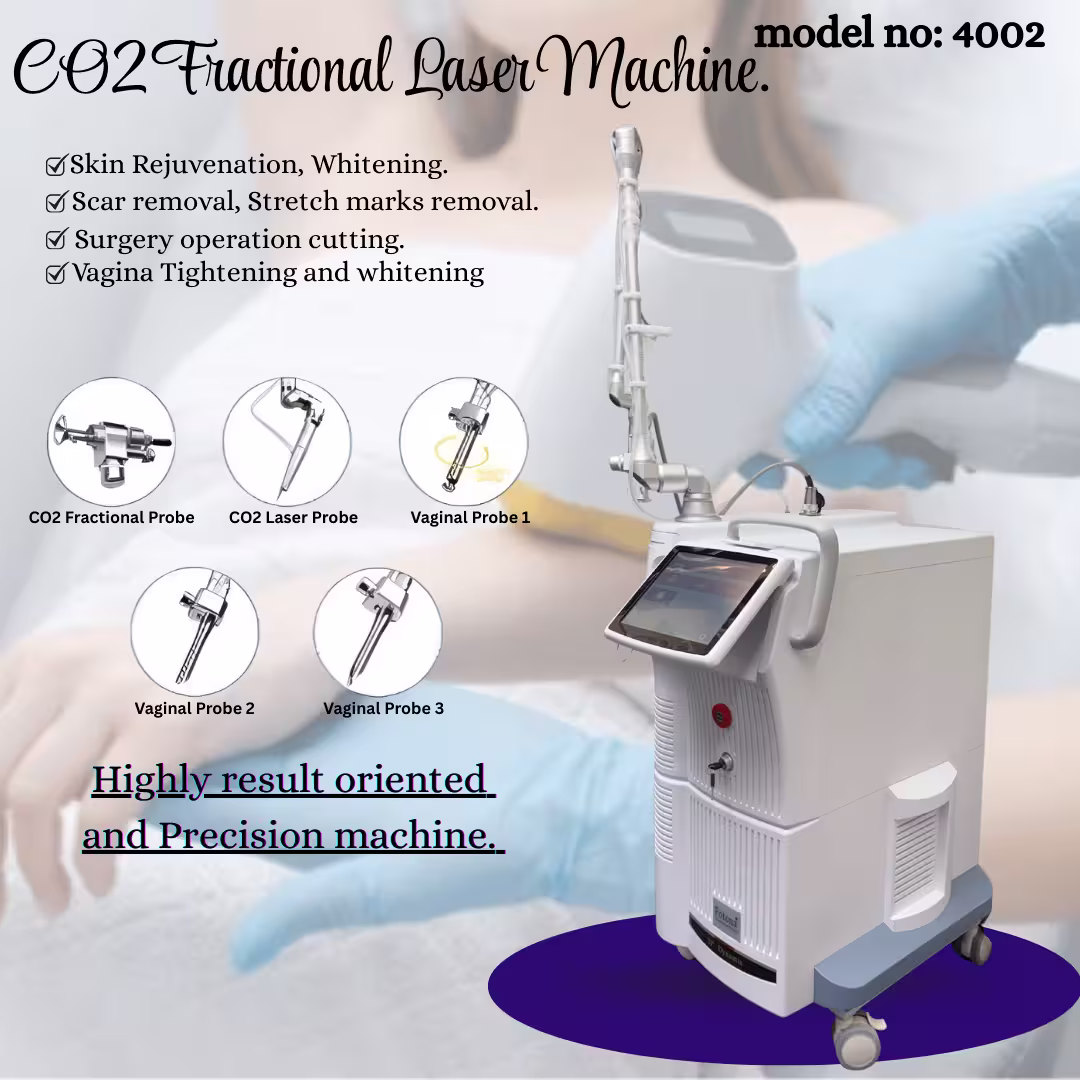

The CO2 Fractional Laser Machine (4002) is a professional, multi-application aesthetic platform designed for fractional skin resurfacing, scar and texture treatments, minor surgical procedures, and intimate wellness protocols. It uses a 10,600 nm sealed-off CO2 laser source with a rated output of 60 W and delivers energy through a seven-joint articulated arm for controlled, precise treatment.

Its fractional scanner covers areas up to 20 x 20 mm and supports circle, triangle, square, rectangle, hexagon, ellipse, and line patterns. Operators can choose continuous, single-pulse, interval-pulse, and super-pulse output, along with Random, Normal, and Midsplit scanning modes. Adjustable treatment power, dwell time, point timing, row spacing, and scan passes support customised professional protocols.

The system includes a touchscreen control panel, red 635 nm aiming beam, foot-switch activation, multiple specialised treatment heads, and an air-circulation cooling system. It is intended for trained professional use in dermatology, aesthetic, cosmetic, and intimate wellness clinics.
